GIMAC has realised a new co-extrusion micro-plant for production of 3-components single filaments and small tubes calibrated and not calibrated, suitable for laboratories and/or for medical and pharmaceutical use (i.e. catheters and micro-encapsulated drugs).

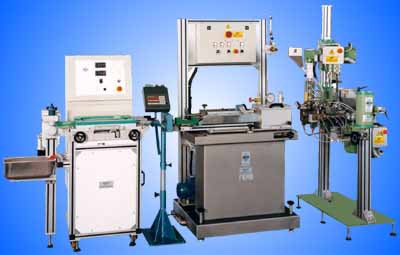

The plant, 4.5 m long, includes: 3 micro-extruders Ø12 mm., 3 control cabinets, 1 head, 1 vacuum calibrating unit with cooling unit, 1 haul-off.
The plant allows production of small tubes with OD ranging from 1 to 4 mm., made from rigid and soft materials up to 3 layers or single layer tubes with one or more stripes (i.e. radio opaque stripes). The plant can be completed with a supervision unit and a diameter control system. The output of the plant equipped with 3 micro-extruders (Ø12 or Ø14 or Ø18 mm) can vary from a minimum of 200 g/hour up to around 10 kg/hour.
