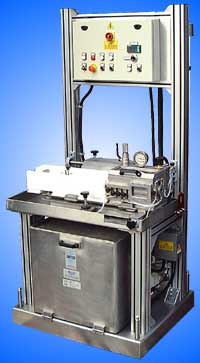

We have realised a solid structure in stainless steel able to contain to a minimum the mechanical clearances and the vibrations bound to the calibration under high vacuum. The calibration unit can be regulated with precision by hand, vertically, horizontally and longitudinally in order to allow a perfect connection with the extrusion axe.
The closed circuit cooling system has been realised in order to allow an excellent water temperature regulation. The used water pump assures a perfect stabbility of the vacuum degree and the circuit allows a fine regulation and an exact control of the depression value to assure the tube's diameter precision and the quality of the extruded product. This calibration unit has been designed for the calibration of tubes with diameters between 0.4 and 6mm (other dimensions on request) in rigid and soft materials.
Technical features:
- circuit for the calibration of rigid and soft tubes
- stainless steel base and anodized light alloy profiles
- 4 wheels for machine movement and 4 adjustable feet for positioning
- extrusion height 1050mm, adjustible manually via handwheel, ±10mm
- manual longitudinal adjustment via handwheel, stroke 110mm
- manual transversal adjustment via hanwheel, ± 5mm
- water re-circulation tank in stainless steel overturing with hinge for easy cleaning
- automatic adjustment of water level
- anodized light alloy vacuum tank, 300mm long, rounded bottom for easy cleaning
- stainless steel AISI 304 lid with seal
- white polyzene cooling bath, 500mm long, with tube guide rolls
- stainless steel pump for water re-circulation
- dismantle heat exchanger in stainless steel, to be connected on your chill unit
- stainless steel vacuum puump 1.1KW, with stainless steel air/water separator
- adjustible vacuum degree via gate valve and analogic indicator of vacuum degree
Optional:
- stainless steel AISI 304 vacuum tank electro-polished, rounded bottom for easy cleaning
- temperature gauge with electric and hydraulic circuit for water temperature adjustment
- automatic valve for vacuum degree control
- different extrusion heights

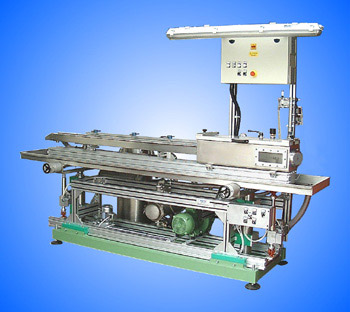

Calibrating unit L=2500
This calibration unit has been designed for the calibration of tubes with diameters between 4 and 30 mm (other dimensions on request) in rigid and soft materials.
We have realised a solid structure in electro-welded steel, able to reduce the mechanical movements to the minimum, as well as the vibrations bound to the calibration under high vacuum.
The calibration bath can be vertically and longitudinally adjusted with precision by means of electric jacks and transversally adjusted in manual way, in order to assure a perfect coincidence with the extrusion axe.
The cooling system with closed circuit has been realised in order to allow a very good constancy of the water temperature.
The vacuum pump used, assures an excellent stability of the vacuum degree and the circuit allows a fine regulation and an exact control of the depression value, to guarantee the precision of the diameter of the tube as well as the quality of the extruded product.
Technical features:
- Electro-welded steel base
- Mobile structure in anodised aluminium sections
- Floor bearing on 4 adjustable feet
- 4 wheels for machine movement
- extrusion height 1050 mm ±50
- front and back vertical adjustment of the calibration bath
- holder level by means of electric jacks
- longitudinal adjustment by means of electric jacks, 320 mm stroke
- manual front and back transversal adjustment with hand-wheel ±20 mm
- vacuum tank L=760 in light alloy anodised
- aluminium anodised lid with transparent PC windows with seals
- stainless steel vacuum pump 1,1 kw with stainless steel air/water separator
- manual adjustment of vacuum level by means of sluice gate valve
- analogue indicator of vacuum degree
- general switch
- On/Off push buttons for vacuum pump
Optionals:
- Vacuum tank in stainless steel
- Automatic valve for vacuum adjustment
- Extrusion height different from 1050 mm
- Stainless steel cooling tank L=1700, with tube guide rolls
- water re-circulation tank (containing tank) with pump, heat exchanger and automatic system of water level resetting (on request with temperature feeler and relevant electric and hydraulic circuit for water temperature regulation).
