Dry Granulator MSL 12/28-240

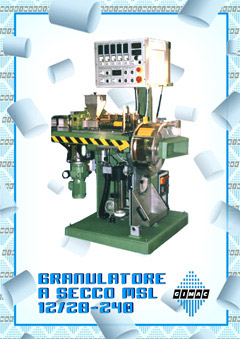

The dry-microgranulator for laboratory allows to get, in short time, small samples, for the next use in the production, of masterbatches with thermoplastic base (elements) like: PET, PA, PC, PP, PE, PMMA, PS, PVC etc, liquid crystal etc., of shapes and dimensions normally in commerce. The system enables the granulation of any thermoplastic material without using water for the cooling of the material, allowing the use of the granules immediately after their extrusion, avoiding the drying process. The granulation plant with extruder Ø 12/28D can produce from few grams up to some kilos per hour. We have studied a screw which assures very good mixing characteristics, and gives a good result in colour uniformity, preventing a bad mixing of the grinded material with the neutral one (like in the use of master), which is very often cause of colour difference in the product. The screw of the extruder is protected by a safety joint at calibrated breaking. Different pneumatic controls move the extruder allowing the release of the head from the granulating disk enabling the cleaning of the die in a short time and a quick extraction of the screw. This microplant is mainly used in: - Laboratories - homespun yarn field.

DRY GRANULATOR MSL 12/28-240 Ø12/28D Optional
Screw diameter mm
Screw length L/D
Screw speed rpm
Bearing axial dynamic load daN		 12
28
100
2800

24 -40-50-150
N° of barrel heating zones
Heating power of each barrel zone W
Max. working temperature °C
Max. working pressure BAR
N° of head body heating zones
Power of head body heating zones W
N° of die heating zones
Power of die heating zones W
Die diameter mm		 3
480
350
500
1
500
1
400
3
Hopper capacity litres 3
N° of cooling zones of the feeding zone
Type of cooling
Water comsumption m3/h		 2
water
~0.1
Motor type
Motor KW
N° of revolution rpm
Power of motor fan W
Encoder type		 asynchronous
1.1
2000
40
1024 imp/rpm		 Brushless
Reduction gear type
Reduction gear ratio I=
Reduction gear nominal torque daNm		 worm reduction
20
10.6		 81-50-40-13
Total installed power KW
Extruder weight Kgs		 8
800

NOTE: Non binding data, the manufacturer can introduce without notice any modification considered as necessary.



Filter Test unit for Masterbatches

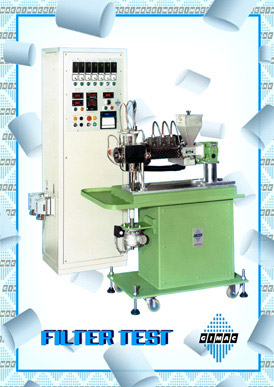

The Gimac filter test unit is suitable to test various masterbatches for different polymers and basically consists of:

- 1 microextruder Ø14/24D
- 1 pressure feeler that controls the speed of the of the screw
- 1 melt gear pump managed by an A.C. drive with current- and speed display
- 1 pressure feeler connected to a pressure recorder
- 1 filter Ø52,5mm that can be easily replaced with different porosities, as regards the various exigencies of the polymers
- 1 electric control panel with temperature control system and recorder for the storage of the pressure- and temperature variations during the process

The machine is suitable to test different kinds of thermoplastic material like: PET, PA, PC, PE, PP, PMMA, PS and others, included liquid crystals (on request it can also be supplied for fluoropolymers processing).

The working process of the machine is based on the difference of pressure wich is recorded each time that the filter is obstructed from the impurities of the masterbatch. The test is based on small quantities of material which are tested in a period of time that can be changed on request. Normally the test is effected on 1 Kg of material in a period of 60 minutes.

This test enables to decide the good quality of one masterbatch since, if it has a good dispersion and a fine microgranulometry it allows very long spinning productions between the cleaning operation of one die and the other, avoiding expensive and frequent production stops.

EXTRUDER Ø14/24D
Scre diameter mm
Screw lenght L/D
Screw speed rpm
Bearing axial dynamic load daN		 14
24
100
2800
N° of barrel heating zones
Heating power of each barrel zone W
Max. working temperature °C
Max. working pressure BAR		 3
480
350
500
Hopper capacity lt 3
N° cooling zones of the feeding zone
Type of cooling
water consumption m3/h		 2
water
~0.1
Motor type
Motor KW
N. of revolution rpm
Power of motor fan W
Encoder type		 asynchronous
1.1
2000
40
1024 imp/rpm
Reduction gear type
Gear reductio ratio I=
Gear reductio nominal torque daNm 		worm reduction
20
10.6
Melt Pump
Pump type
Capacity		 a ingranaggi
0,584cm³/giro
N° pump thermoregulation zone
Heating power pump zone W
Max. Working Temperature °C
Max. working pressure BAR		 1
450
350
280
Motor Pump type
Motor KW
Motor rpm
Power of motor fan cooling W
Encoder type 		asynchronous
1.1
2000
40
1024 imp/rpm
Reduction gear type
Gear reductio ratio I=
Gear Reductio Nominal ratio daNm		 worm reduction
20
10.6
Total installed Power KW
Filter test unit weight Kg		 8,5
270

NOTE: Non binding data, the manufacturer can introduce without notice any modification considered as necessary.
